Product category:Automatic terminal machine series   Back

Product Name:Automatic Terminal Crimping Machine (one end crimp terminal and insert waterproof plug, one end wire twist and tin)

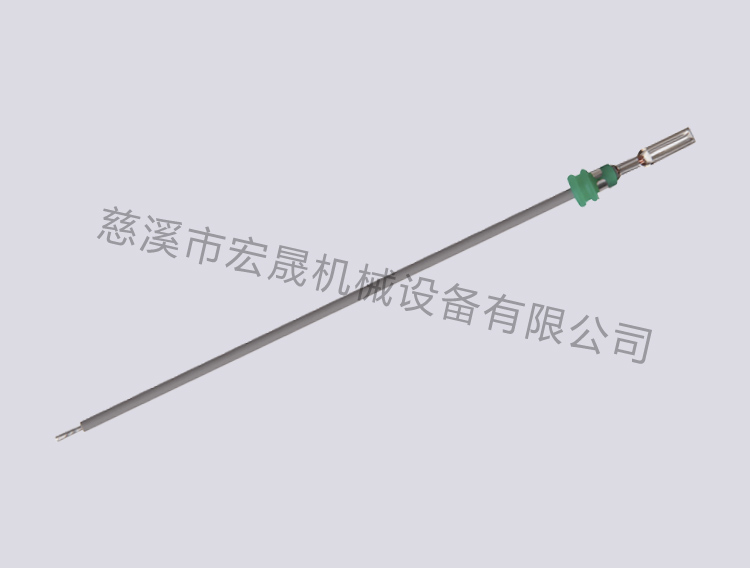

Finished shot





Features :

●   Single end insert waterproof plug、crimp terminal, first insert waterproof plug then strip the wire, stop the reverse filament phenomenon  when insert the waterproof plug.

●   Single end twist and tin, according to the different wires, twist function can be started and stopped in setting, using wire 90°overturn  vertical tin, uniform and beautiful.

Technical Parameters

Model   HS-63212
Power   AC220V/50HZ  Single phase
Function

  Wire cut, single/double end strip, single end insert waterproof plug and crimp terminal, single

  end twist and tin.

Capacity   23pcs/min (wire length within 500mm)
 Wire size   0.3m—2.5m
Cutting length   55mm—3000mm
 Stripping length   4mm—10mm
Twisting length   3mm—10mm
 Cutting tolerance   Less than (0.5mm+cutting length*0.2%)
 Crimping capacity   2.0T
 Air pressure   0.6-0.7Mpa (Use dry and clean air)
 Detection device   Lack of wire or knotted, terminal crimping detection, waterproof plug inserting detection
Dimension   2200L*3200W*1600H (mm)
Weight   About 400kg
Other   Choose Pressure management device or Terminal visual inspection (it is best to choose one)
